How to Set Up a Custom GitLab Runner

A project runner belongs to one GitLab project. Instance runners are shared across every project on the GitLab instance, which is usually not what you want for a dedicated pipeline.

The walkthrough below uses GitLab Runner v16.10.0 in Docker. Replace the GitLab URL, runner name, and registration token with your own. The screenshots use dummy values such as https://gitlab.example.com and the demo tag.

Administrators can review every runner on the instance from the admin runners page:

https://gitlab.example.com/admin/runners

Generate a GitLab Runner registration token

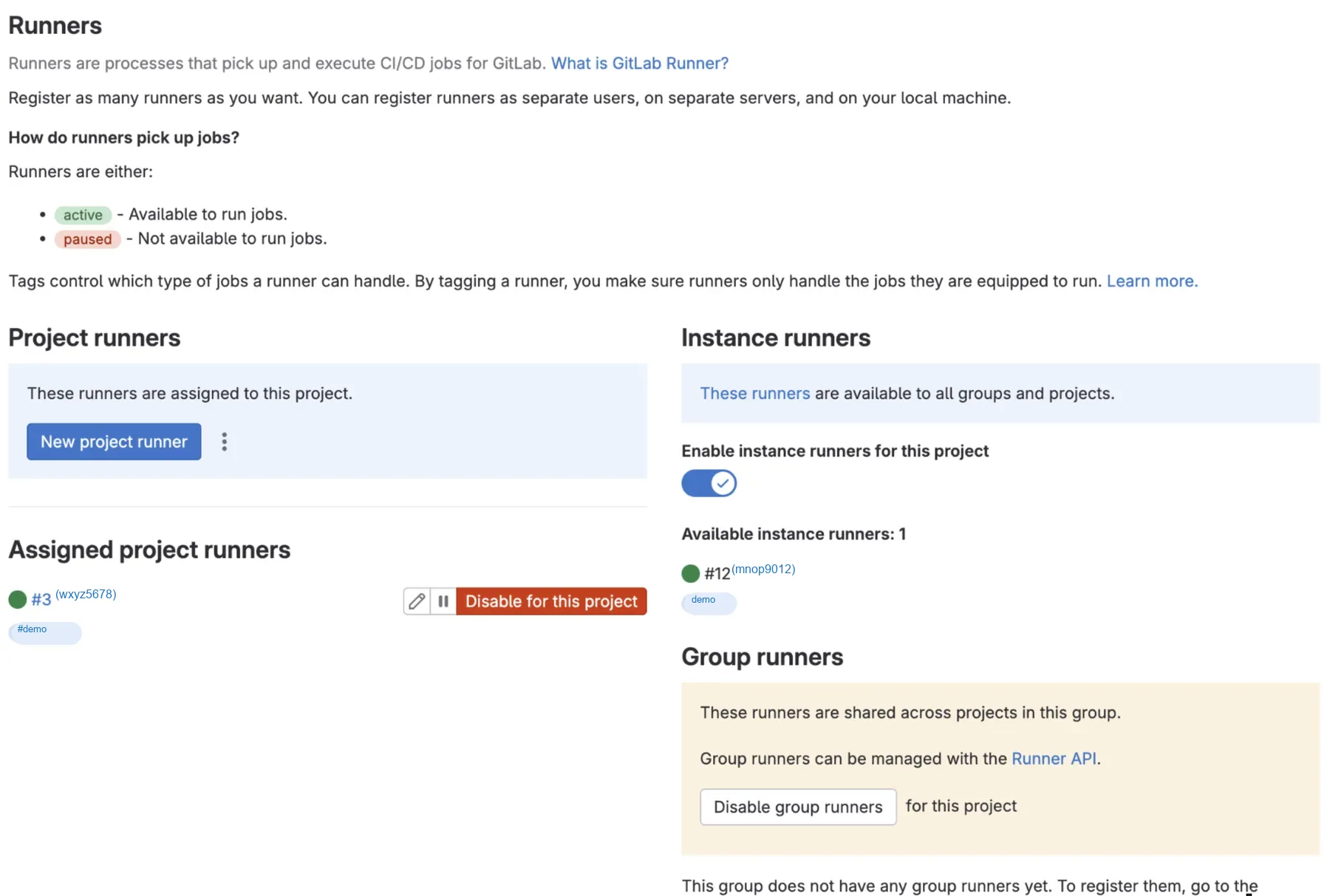

Open the project’s CI/CD settings and select Runners:

https://gitlab.example.com/group/example-app/-/settings/ci_cd

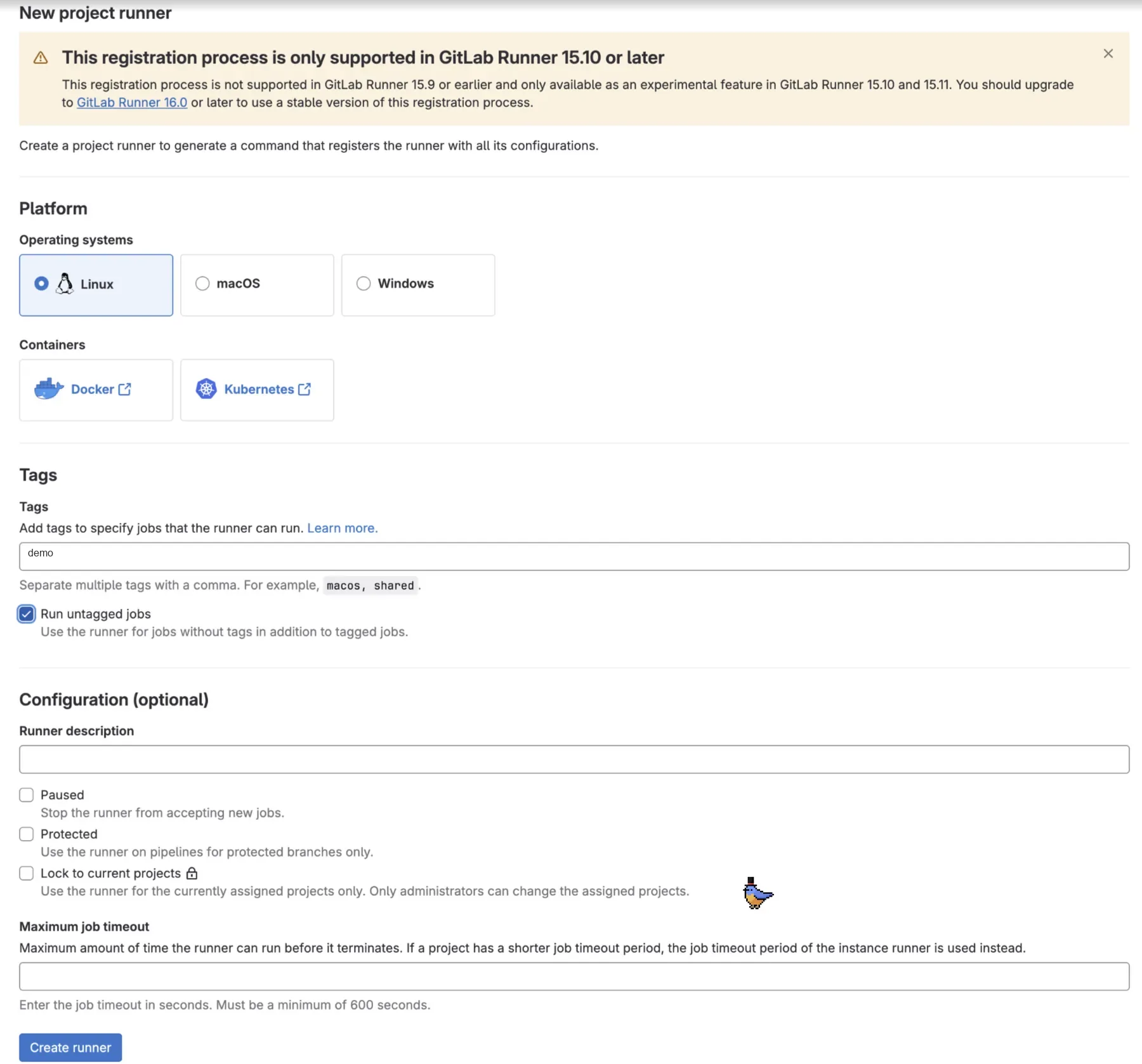

Click New project runner.

Apply those settings and click Create runner. GitLab’s new registration flow needs GitLab Runner 16.0 or later, which is why this guide pins v16.10.0. Official install notes are in the GitLab Runner Docker documentation.

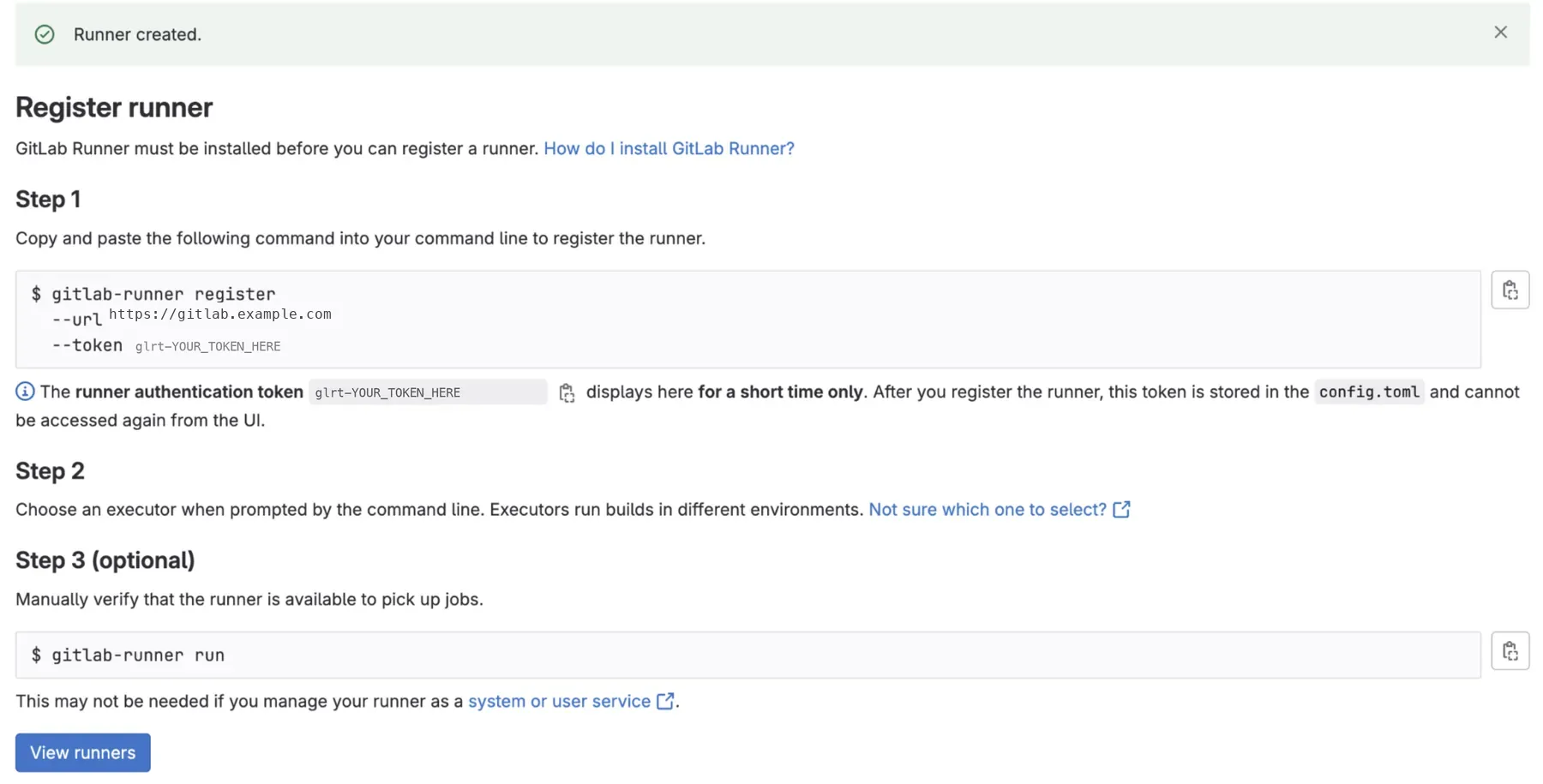

GitLab shows the authentication token only for a short time. Copy it now. You will pass it to gitlab-runner register in the next steps.

Pull the GitLab Runner Docker image

docker pull gitlab/gitlab-runner:v16.10.0

Create a configuration directory

Replace YOUR with a runner identifier for this project, such as example or project-1.

mkdir -p /srv/YOUR-gitlab-runner/config

Each runner on the same host needs its own name and config directory.

Run the GitLab Runner container

Use the same identifier as the config directory.

docker run -d --name YOUR-gitlab-runner --restart always \
    -v /srv/YOUR-gitlab-runner/config:/etc/gitlab-runner \
    -v /var/run/docker.sock:/var/run/docker.sock \
    gitlab/gitlab-runner:v16.10.0

Register the runner

Replace YOUR with that identifier and YOUR_TOKEN_HERE with the token GitLab just generated.

docker run --rm -it -v /srv/YOUR-gitlab-runner/config:/etc/gitlab-runner gitlab/gitlab-runner:v16.10.0 register \
  --url https://gitlab.example.com \
  --token YOUR_TOKEN_HERE \
  --executor docker \
  --docker-image docker:stable \
  --docker-privileged

The command opens an interactive prompt:

• GitLab instance URL: press Enter to keep the URL from --url
• Runner name: press Enter to keep the generated name, or type your own
• Executor: press Enter to keep docker
• Default Docker image: press Enter to keep docker:stable

Verify the runner container

docker ps

You should see the runner container listed and running.

Confirm the runner in GitLab

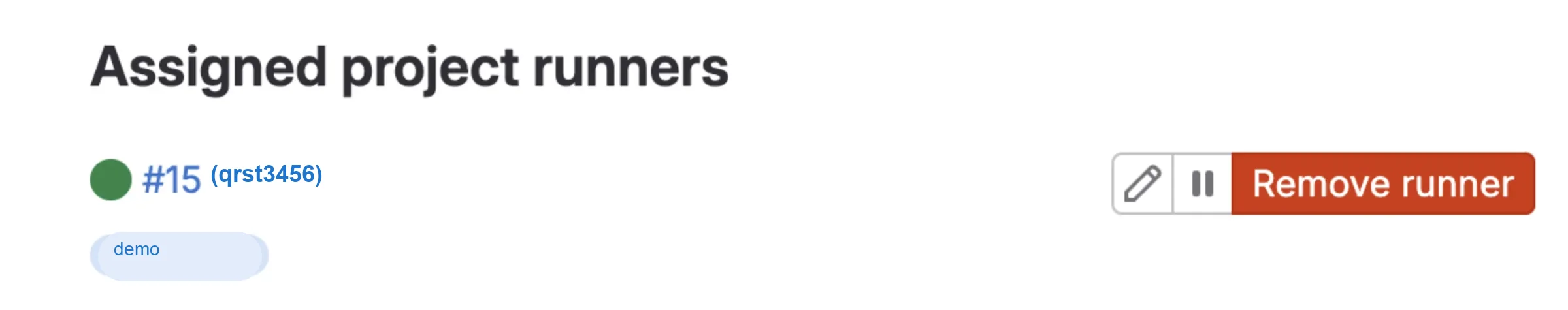

Open the project’s CI/CD runners settings again. The new runner should appear as assigned and online:

https://gitlab.example.com/group/example-app/-/settings/ci_cd#js-runners-settings

Important notes

• Give each runner a unique container name and /srv/.../config directory so several runners can share one server.
• Leave enough disk space for job images, caches, and Docker layers.

Troubleshooting

If the runner does not come online:

1. Check logs: docker logs YOUR-gitlab-runner
2. Inspect the generated config: docker exec -it YOUR-gitlab-runner cat /etc/gitlab-runner/config.toml
3. Confirm the host can reach the GitLab instance
4. Confirm Docker socket access and permissions on the host

TL;DR

mkdir -p /srv/example-gitlab-runner/config

docker run -d --name example-gitlab-runner --restart always \
    -v /srv/example-gitlab-runner/config:/etc/gitlab-runner \
    -v /var/run/docker.sock:/var/run/docker.sock \
    gitlab/gitlab-runner:v16.10.0

docker run --rm -it -v /srv/example-gitlab-runner/config:/etc/gitlab-runner gitlab/gitlab-runner:v16.10.0 register \
  --url https://gitlab.example.com \
  --token YOUR_TOKEN_HERE \
  --executor docker \
  --docker-image docker:stable \
  --docker-privileged

docker ps
